Electronic High TG180 FR4 Multilayer PCB Double Sided Printed Circuit Board

Product Categories

Shenzhen Xinchenger Electronic Co.,Ltd

Contact Now

Brand Name : XCE

Model Number : XCEM

Certification : CE,ROHS, FCC,ISO9008,SGS,UL

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T,Western union

Supply Ability : 1, 000, 000 PCS / week

Delivery Time : 5-10 days

Packaging Details : inner: vacuum-packed bubble bag outer: carton box

Brand : XCE

Model : XCEM

Color : green

Origin : Shenzhen

Size : 14*8cm

Panel : 1

Contact Now

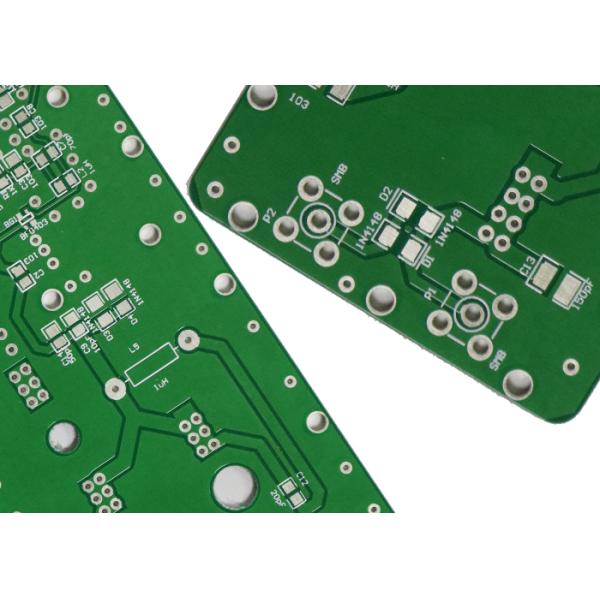

Electronic High TG180 FR4 Multilayer PCB Double Sided Circuit Boards

Specification:

Technology	Materials
Multilayer PCBs with 16 layers	FR4
PCB thickness	Final copper
1.0mm	70µm
Conductor track widths	Minimum drilling diameter
≥ 90 µm	0.2 mm
Contour production	Solder masks
Milling Scoring	Photosensitive solder mask systems UV solder mask system, screen printing
Surfaces	Additional printing
HASL lead free	Identification printing, inkjet Component printing, screen printing Through-hole printing Peelable solder mask (green mask) Masking tape Plugging

Layer	12-26
Material type	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
Board thickness	0.21mm to 7.0mm
Copper thickness	0.5 OZ to 6 oz
Size	Max. Board Size: 580mm×1100mm
	Min. Drilled Hole Size: 0.2 mm (8 mil)
	Min. Line Width: 4mil (0.1mm)
	Min. Line Spacing: 4mil (0.1mm)
Surface finishing	HASL / HASL lead free, HAL, Chemical tin, Immersion Silver/Gold, OSP, Gold plating
Solder Mask Color	Green/Yellow/Black/White/Red/Blue
Tolerance	Shape tolerance: ±0.13
Tolerance	Hole tolerance: PTH: ±0.076 NPTH: ±0.05
Certificate	UL, ISO 9001, ISO 14001
Special requirements	Buried and blind vias+controlled impedance +BGA
Profiling	Punching, Routing, V-CUT, Beveling

Electronic High TG180 FR4 Multilayer PCB Double Sided Printed Circuit Board
